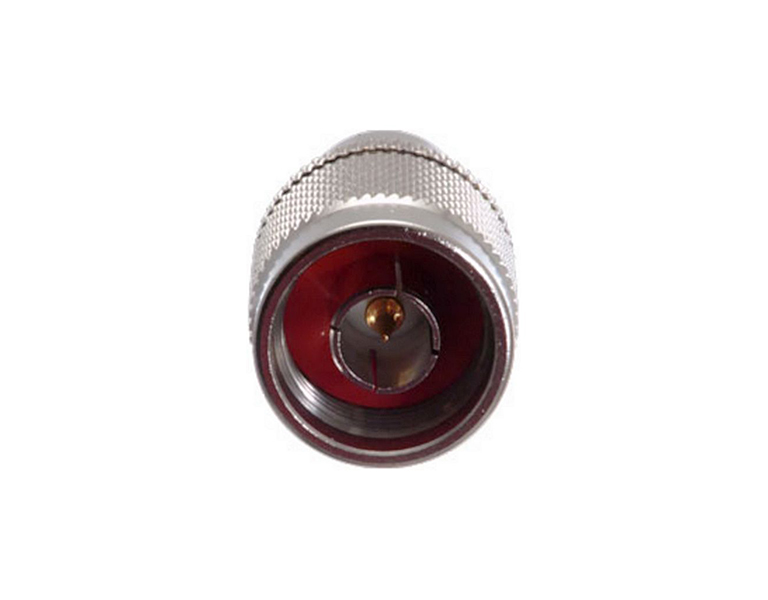

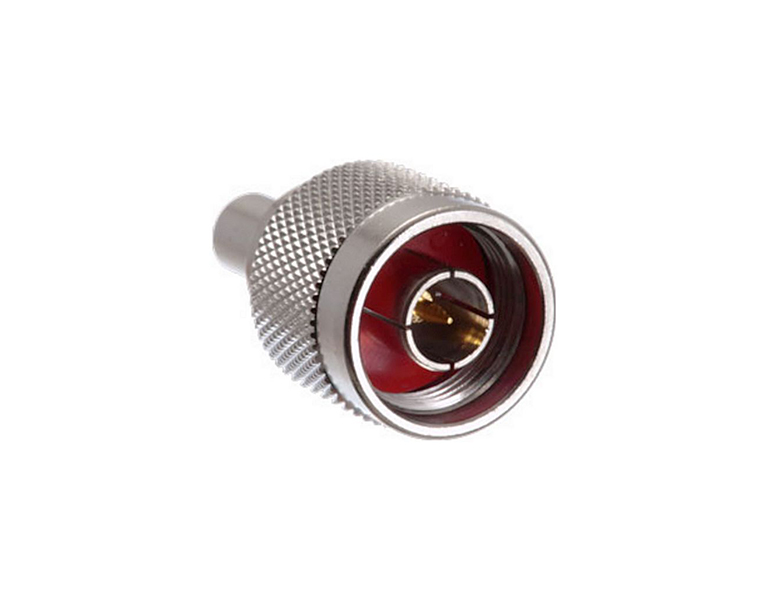

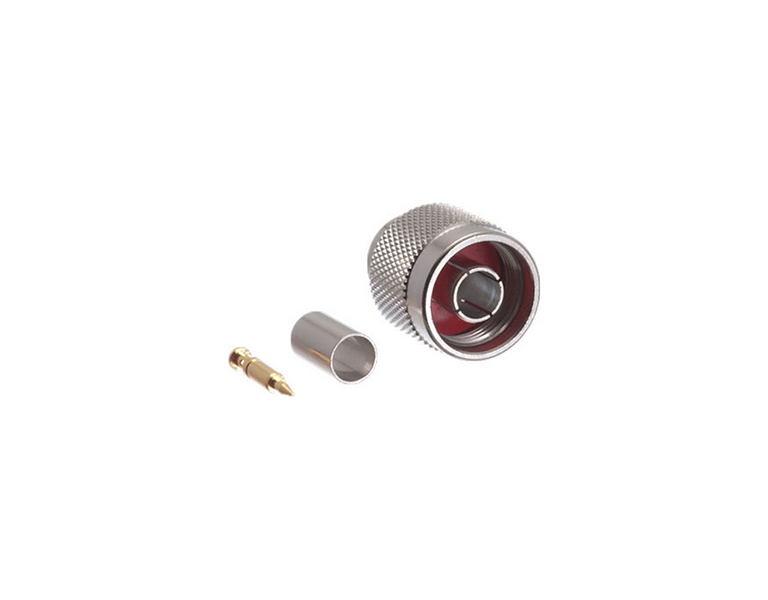

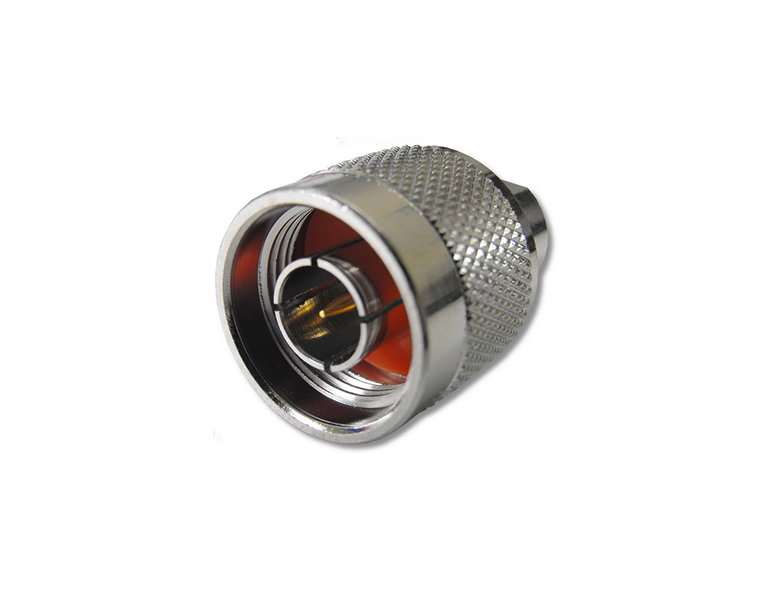

E-zy EZ-NM240 N-Type Male Crimp connector for 240 series cable
Product Code:
EZ-NM240
Manufacturer E-zy
Sales price:
4,30 €(Includes 24% VAT)
Sales price without TAX:3,47 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
E-zy EZ-NM240 N-Type Male Crimp connector for 240 series cable
N-Type Plug Crimp connector for 240 series cable.
N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The N series connector is impedance matched to 50 ohm cables.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Impedance | 50 ohm |
| Frequency Range | 0 to 11.0 GHz |
| V.S.W.R. | 1.3 max |
| Working Voltage | 1,000 volts rms max at sea level |
| Dielectric Withstanding Voltage | 2,500 volts rms max at sea level |
| Contact Resistance | Center contact=1.0 Milliohms max |
| Contact Resistance | Outer contact=1.0 Milliohms max |
| Insertion Loss | 0.3 dB max at 10 GHz |
| Insulation Resistance | 5,000 Megohms min |
| Body (Material/Finish) | Brass/Nickel |
| Center Pin (Material/Finish) | Bronze/Gold |
| Crimp Tube (Material/Finish) | Annealed Copper/Nickel |
| Dielectric | Teflon |
