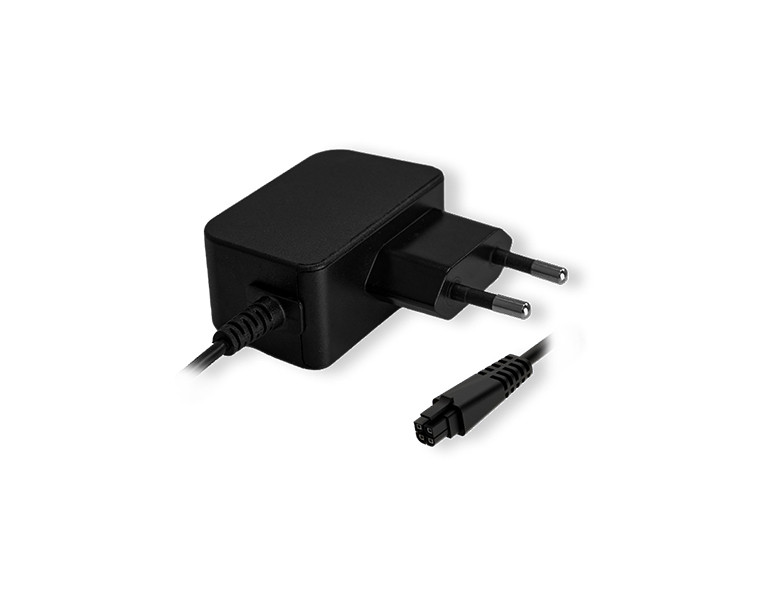

Teltonika PR3PXEU3 Power supply, 18W
Power supply for RUTX08 and RUTX09.
| Specifications | |
| General | |
| Input Voltage | 100 - 240 VAC |
| Input Frequency | 50/60 Hz |
| Input Current | 0.6 A |
| Inrush Connector | EU (Type C) |
| Output Voltage | 12 VDC |
| Output Current | 1.5 A |
| Output connector | 4 - PIN, 3 mm pitch |
| Weight | 89.8 g |
| Additional | |
| Input voltage absolute maximum | 90 - 264 VAC |
| Input frequency absolute maximum | 47 - 63 Hz |
| Inrush currect | 60 A |
| Output voltage absolute maximum | 11.4 - 12.6 VDC |
| Short circuit protection | √ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 4000 VDC |
| MTBF | 30000 h |
| Certification | Safety: IEC 62368-1:2014 EN 62368-1:2014+A11:2017 EMC: EN 55032:2015 EN 55035:2017 EN 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 Energy efficiency: Level VI |
