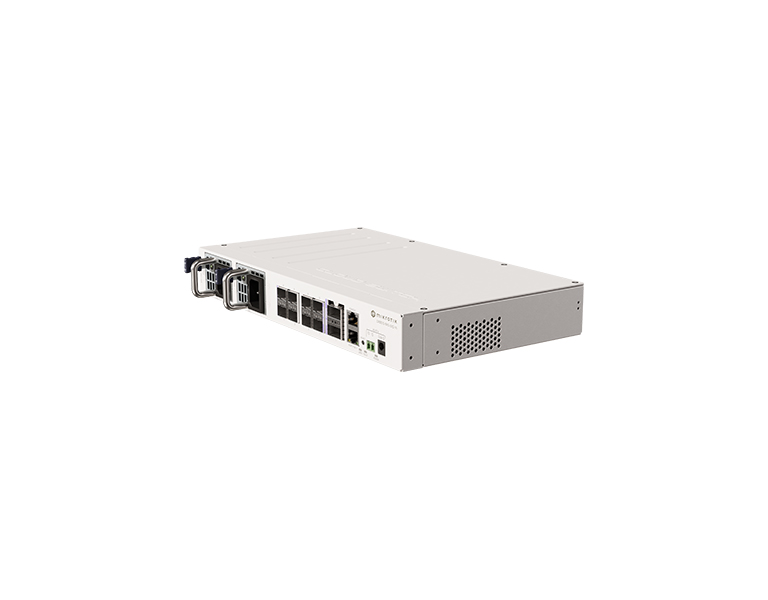

This handy switch has two 100 Gigabit QSFP28 ports and eight 25 Gigabit SFP28 ports. This combination of ports guarantees a perfect fit in almost any setup or server room. Various direct attach cables, active optical cables, copper RJ45’s… CRS510 will keep everything connected! You’ll save time, money, and precious nerve cells with the backward compatibility. This unit supports all sorts of devices – 40 Gigabit, 25 Gigabit, 10 Gigabit, and even older Gigabit connections. And – speaking of nerve cells – we’ve kept the sysadmin’s emergency tool: the good old console port.
Another reason why they love the new CRS510 (and you will too!) is the performance. It can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 27W (without attachments).
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 12 μήνες |
Specifications | |
Product code | CRS510-8XS-2XQ-IN |
CPU | QCA9531 650 MHz |
CPU architecture | MIPSBE |
CPU core count | 1 |
Size of RAM | 128 MB |
Storage | 32 MB, Flash |
Number of 100M Ethernet ports | 1 |
Number of 25G SFP28 ports | 8 |
Number of 100G QSFP28 ports | 2 |
Switch chip model | 98DX4310 |
Dimensions | 320 x 185 x 44 mm |
MTBF | Approximately 200'000 hours at 25C |
Operating system | RouterOS v7, License level 5 |
Operating temperature | -40°C to +70°C |
Powering | |
Number of DC inputs | 3 (PoE-in, DC jack, 2-pin terminal) |
PoE-in input Voltage | 43-57 V Passive PoE or 802.3bt Class 6 |
DC jack input Voltage | 36-57 V |
2-pin terminal input Voltage | 36-57 V |
Number of AC inputs | 2 |
AC input range | 100-240 V |
Frequency | 47-63 Hz |
Max power consumption without attachments | 27 W |
Max power consumption | 45 W |
